Digi XBee Gateways

Digi IX15 IoT Gateway and Cellular Router

Programmable IoT gateway connects Digi XBee-enabled devices to remote applications over cellular and Ethernet

• Digi XBee® (Zigbee®, DigiMesh®, 802.15.4), Bluetooth® 5.0 and RS-232/485 for connection to local devices
• Open source Python environment for custom application development
• LTE Cat 4 cellular and 10/100 Ethernet WAN connectivity
• Digi Remote Manager® platform for easy setup, mass configuration/firmware updates, remote device management and out-of-band management
• Full-featured industrial cellular routing platform
• Redundant connectivity with dual SIMs and Digi SureLink®
• Built-in Digi TrustFence® for device security, device identity and data privacy
• Migrating from a WR-series device? Get information and tools to setup your new IX-series router.

Digi XBee HX Gateway

Digi XBee HX Gateway

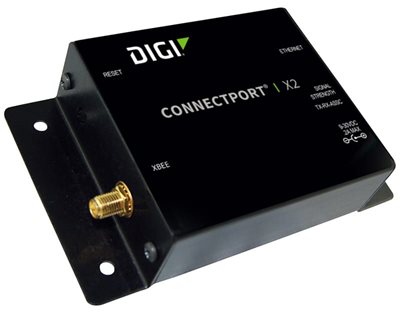

Digi ConnectPort X2 Gateway

Industrial-grade Digi XBee to IP gateways

• Digi XBee® to Ethernet IP gateways support numerous Digi XBee protocols
• Industrial-grade enclosures for rugged environments
• Digi Remote Manager® for secure, scalable access to an unlimited number of remote assets and seamless web services integration from Digi gateways into customer back office applications

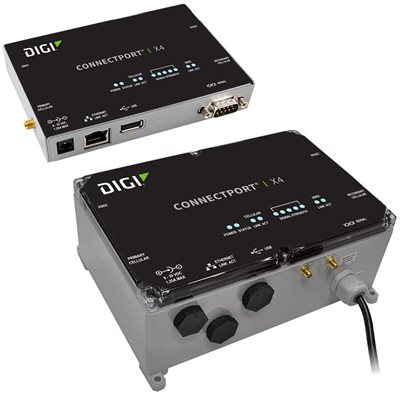

Digi ConnectPort X4 Gateway

Remote M2M networking gateways designed for commercial grade and rugged outdoor applications

• WAN connectivity via LTE or 3G HSPA+ Networks
• Local wireless connectivity through Zigbee
• Local wired connectivity through RS-232/422/485, 2 analog inputs and 2 digital inputs
• Small commercial grade enclosure or NEMA 4X/IP66 case
• Full routing/IP filtering plus IPsec/SSL VPNs with DES, 3DES or AES encryption
• Easy development environment via DIA and Python scripting as part of Digi ESP IDE
• Support for Modbus/Modbus TCP
• Digi Remote Manager® support for easy setup, mass configuration and management

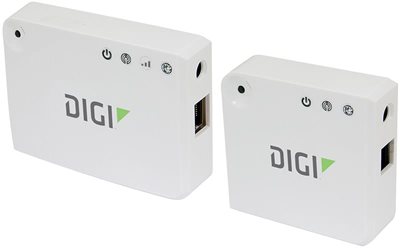

Digi XBee Zigbee Gateway Wi-Fi Hub

Programmable Zigbee gateway hub connects Digi XBee module devices to cloud-based applications and products over cellular, Wi-Fi or Ethernet

• Open Source Python environment for custom application development on the gateway
• Out-of-box integration with Digi Remote Manager® enables remote connectivity, configuration and management of Digi XBee® networks
• Secure, scalable access to an unlimited number of remote Digi XBee-based devices
• Cellular, Wi-Fi and Ethernet WAN options for flexible broadband connectivity

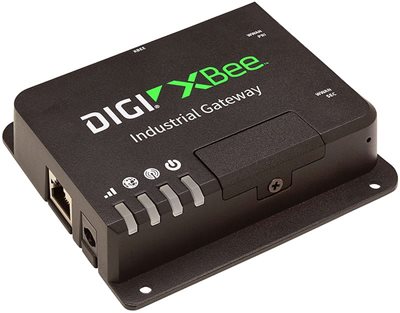

Digi XBee Industrial Gateway

Programmable gateway connects Digi XBee enabled devices to remote applications over cellular or Ethernet

• Open-source Python environment for custom application development on the gateway
• Out-of-box integration with Digi Remote Manager® enables remote connectivity, configuration and management of Digi XBee networks
• ZigBee enabled for connection to local wireless devices
• Cellular and Ethernet WAN options for flexible broadband connectivity
• Can be deployed in any environment due to industrial temp range and rugged enclosure

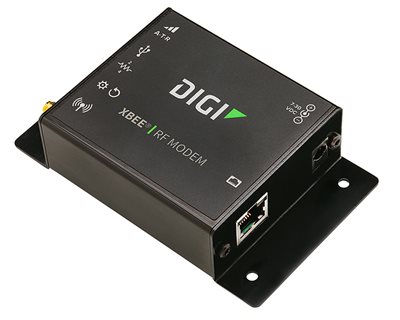

Digi XBee SX RF Modems

1-Watt industrial-grade 900 MHz RF modem with best-in-class range and power consumption for wireless cable replacement

• Adjustable output power up to 1-Watt achieves up to 65 mile range*** with high gain antenna
• Interfaces options include RS-232, RS-485, USB, Analog I/O and Digital I/O
• DigiMesh® networking topology for redundancy and reliability
• 256-bit AES encryption for secure data communications
• Rugged metal enclosure and -40º C to 85º C operating temperature for industrial applications
• Fully certified for use in free, unlicensed 900 MHz band

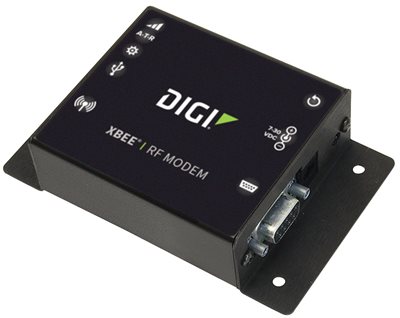

Digi XBee-PRO 900HP RF Modems

900 MHz stand-alone RF modems provide outstanding range (up to 28 miles)* in a reliable wireless solution

• Industrial design with -40° C to 85° C operating temperature
• Superior outdoor LOS range of up to 28 Miles*
• RF data throughput up to 200 Kbps
• 900 MHz license-free ISM band operation
• Interface options include RS-232, RS-485, USB and Ethernet
• DigiMesh® peer-to-peer mesh networking protocol
  • Self-healing and discovery for network stability
• Includes mini-USB port for simnple device configuration

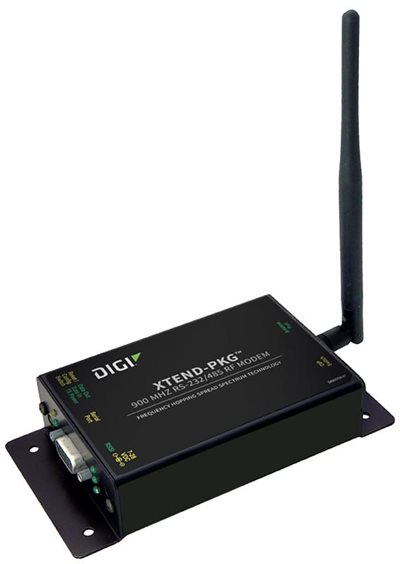

XTend RF 900MHz Modems

1 Watt/900 MHz stand-alone radio modems

• Outdoor line-of-sight range up to 40 miles* (with high gain antenna)
• Outstanding receiver sensitivity (-110 dBm @9600 bps)
