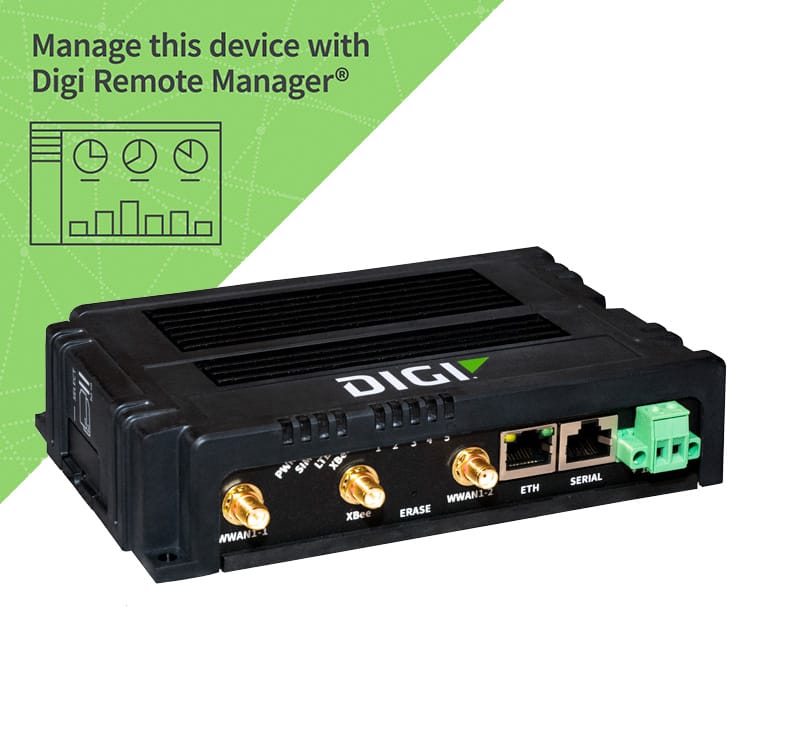

Digi IX15 IoT Gateway and Cellular Router

Programmable IoT gateway connects Digi XBee-enabled devices to remote applications over cellular and Ethernet



The versatile Digi IX15 device functions as both gateway and router for customers seeking lower-cost, quicker-to-market alternatives to chip-down DIY designs for networking operations. Digi IX15 is an industrial-grade IoT gateway that connects Digi XBee® modules to cloud applications over cellular or Ethernet, providing the easiest path to Internet connectivity for the Digi XBee ecosystem of hardware, software, services and award-winning tools.

With certification for Class 1 Division 2 deployment and rugged enclosure, Digi IX15 is ideal for the harsh environments found in oil and gas, water/wastewater, solar, agriculture and other industrial applications. For developers needing a highly secure, common platform to cut costs and time-to-market, Digi IX15 reduces risk and drives project efficiencies.

The Digi IX15 IoT gateway includes a simple, open source Python development environment that enables custom applications to perform edge computing locally while providing the most optimal, resilient connectivity between your XBee network and cloud-based applications.

Gain critical insights into your deployed devices and manage your network with Digi Remote Manager® (Digi RM) — the command center for your deployment. Digi RM is a cloud-based solution that facilitates easy setup, mass configuration, maintenance and visibility into the health of your network, whether you deploy dozens or thousands of devices.

In the event of an interruption to your primary network connection, Digi RM also provides secure terminal access for out-of-band management of edge devices via serial port and command-line interface.

Digi XBee Ecosystem

Explore the Digi XBee Ecosystem

Digi XBee is more than a module. It's a complete ecosystem of RF modules, gateways, adapters, and software, all engineered to accelerate wireless development for global deployments. One socket allows you to connect to IoT networks around the globe. With the authentic Digi XBee footprint, you can future-proof your design and know that Digi has you covered for new technologies as they emerge.

Digi XBee Ecosystem

Digi XBee Tools

Develop, Build, Deploy and Manage Your Digi XBee Network

Digi XBee® Tools

Digi XBee Tools support the complete IoT application lifecycle, from the evaluation, testing and prototyping phase through manufacturing and deployment to long-term network management. See how Digi XBee Tools simplify tasks and help get to market faster.

Discover Digi XBee Tools
Digi RM


Digi Remote Manager

Drop-in deployment with simple,
secure remote control

Best-in-class monitoring and management ensures you can scale your deployment to a fleet of any size. Digi Remote Manager® gives you a single, secure platform to access data and manage devices from anywhere. Simple, secure control keeps your deployments on track — edit configurations, update firmware, monitor, schedule and automate tasks — all from your desktop or tablet.

Learn More 90 Day Free Trial


Manage Your Network Your Way

Remote device management: network-wide updates, data insights and control. Digi Remote Manager delivers centralized visibility and automates processes at your command, with actionable 24/7 remote monitoring.

Automated Network Monitoring
Automated Network Monitoring

To keep tabs on dozens, hundreds or thousands of active connected devices requires network monitoring software. Human eyes can't keep up. With Digi RM remote monitoring tools, you're in command. As your IoT device management platform, Digi RM watches your network for disruptions and intrusions, and lets you know when you need to take action. Set alerts for important conditions. Get reports on network performance. Check on any device, anywhere, anytime.

Configuration Management
Configuration Management

Digi Remote Manager has what other IoT device management platforms don't: the ability to configure all of your devices at once, make individual configuration changes, and still manage those specialized configurations in groups. Create group and individual configurations. Deploy rapidly and accurately. Let Digi RM monitor device security.

Firmware Updates
Firmware Updates

Today's IoT devices are smarter, more feature rich, and have more tasks to perform at the edge. And they are not static. You may need to update firmware to enhance functionality, download custom scripts, keep your devices in compliance with corporate security policies, or deploy patches for threats to IoT security. Digi Remote Manager puts the network management tools in your hands to deploy firmware updates or send files to your devices in minutes, even if you have a network of many thousands of devices. Manage your dynamic network with a few clicks. Keep your devices secure.

Edge Computing
Detection and Troubleshooting

Digi RM is always on, even during your network manager’s off hours. As your network monitoring solution, Digi RM lets you know when issues arise, sending alerts and delivering reports so your team can rest easy. At any time, they can gain the insights needed on the health of the entire network or individual devices and remotely troubleshoot, test and reboot devices as needed. Put network monitoring tools to work for you, so you can work smarter.

Digi IX15

Learn how the rugged, industrial-grade Digi IX15 gateway supports rapid deployment of XBee networks and provides a complete solution with Digi Remote Manager® for configuration and management, and built-in Digi TrustFence® security.

Contact a Digi Expert
Digi IX15 Gateways
SKU: IX15-00G4-XB2 Digi IX15 - XBee 3
  • Digi XBee® 3 Zigbee 3.0 MMT
  • LTE Cat 4
  • Regions: EU, UK, Japan
  • (1) Ethernet
  • RS-232/485
  • Accessories not included
IX15-00G4-XB2 How to Buy
SKU: IX15-00G4-XBP2 Digi IX15 - XBee 3 PRO
  • Digi XBee® PRO Zigbee 3.0 MMT
  • LTE Cat 4
  • Regions: Americas
  • (1) Ethernet
  • RS-232/485
  • Accessories not included
IX15-00G4-XBP2 How to Buy
Starter Kits
IX15 Digi-Key Starter Kit IX15 Digi-Key Starter Kit
  • Digi IX15, Digi Remote Manager®, Digi XBee® development kit, accessories
  GET THE KIT
IX15 Mouser Starter Kit IX15 Mouser Starter Kit
  • Digi IX15, Digi Remote Manager®, Digi XBee® development kit, accessories
  GET THE KIT
Accessories
76002107 Digi IX15 2.4 GHz Accessory Kit 76002107 How to Buy
SKU: 76002104 Industrial extended temperature power supply with plug tips for US, UK, EU, AU; -20° to 70° C (-4° to 158° F) 76002104 How to Buy
SKU: DC-ANT-24DT Antenna - Wi-Fi, table-top mount, 2450 Mhz, 0.5 m cable DC-ANT-24DT How to Buy
SKU: 76002103 (1) Cellular antenna (order quantity 2) 76002103 How to Buy
SKU: 76002095 DIN rail clip kit 76002095 How to Buy
SKU: 76000645 RJ-45 to DB-9 Female Crossover, 4' 76000645 How to Buy
Digi Remote Manager
Digi Remote Manager
Digi Remote Manager is the technology platform enabling and automating the deployment, monitoring and management of thousands of devices from a single point of command. Compare Digi’s multiple offerings and varying subscription terms to meet your business needs.
  Get Started
Digi Containers
Digi Containers
Digi Remote Manager enables deployment of custom applications via containers
  Get Started
Digi XBee Cellular Data Plans
Digi XBee Cellular Data Plans
Digi XBee Cellular Data Plans
  Get Started
SPECIFICATIONS Digi IX15
DIGI XBEE®
XBEE MODULE Standard: Digi XBee® 3 Zigbee® 3.0 MMT (XB3-24Z8UM-J)
PRO: Digi XBee® 3 PRO Zigbee® 3.0 MMT (XB3-24Z8UM)
ZIGBEE STACK Zigbee® Standard and Zigbee® PRO versions available
ZIGBEE TRANSMIT POWER Standard: 6.3 mW (8 dBm); PRO: 63 mW (18 dBm)
ZIGBEE RECEIVER SENSITIVITY -102 dBm
BLUETOOTH® VERSION Supports BLE 4.2 and capable of interoperating with BLE 5.0 devices that support 1M PHY. Hardware is software upgradable to 5.0 but not yet enabled except payload extensions (future release).
XBEE CONNECTOR (1) 50 Ω RP-SMA (center pin: male)
CELLULAR
CERTIFICATIONS Visit www.digi.com/resources/certifications for latest certifications
BANDS LTE Cat 4: B1, B2, B3, B4, B5, B7, B8, B12, B13, B18, B19, B20, B25, B26, B28, B38, B39, B40, B41
3G: B1, B2, B4, B5, B6, B8, B19
2G EDGE / GPRS: 850 / 900 / 1800 / 1900 MHz
CONNECTORS (2) 50 Ω SMA (center pin: female)
SIM SLOTS (2) Mini-SIM (2FF)
SIM SECURITY Behind SIM cover, secured with screw (#1 Phillips)
SOFTWARE AND MANAGEMENT
PYTHON Python 3
REMOTE MANAGEMENT Digi Remote Manager®; SNMP v2/v3 (user installed/managed)
LOCAL MANAGEMENT WebUI (HTTP/HTTPS); CLI (Telnet, SSH)
MANAGEMENT / TROUBLESHOOTING TOOLS FTP client, SCP; protocol analyzer with PCAP for Wireshark; event logging with syslog and SMTP client; NTP/SNTP; Nagios, Intelliflow, iPerf, Dynamic DNS, ping, traceroute
ETHERNET
PORTS (1) RJ-45; 10/100 Mbps (auto-sensing)
SERIAL
PORTS (1) RJ-45 10-pin (10P10C); RS-232/485; software selectable
- RS-232 DTE (RXD, TXD, RTS, CTS, DTR, DCD, DSR, RI)
- RS-485 (TX/RX+; RX/TX-); half-duplex
PHYSICAL
DIMENSIONS (L x W x H) 157 mm x 106 mm x 35 mm (6.18 in x 4.17 in x 1.38 in)
WEIGHT 0.39 kg (0.86 lb)
STATUS LEDs Power, SIM, LTE/Internet, XBee, signal strength (5)
ENCLOSURE Glass-filled polyphenylene sulphide (PPS) / IP30
POWER REQUIREMENTS
POWER INPUT 9 - 30 VDC, 1.0 A maximum
POWER CONSUMPTION 2.5 W typical (idle); 6 W typical (peak Tx/Rx)
ENVIRONMENTAL
OPERATING TEMPERATURE -40° C to 74° C (-40° F to 165° F); device performance may be impacted above 60° C (140° F)
RELATIVE HUMIDITY 5% to 95% (non-condensing)
APPROVALS
CELLULAR AND REGULATORY Visit www.digi.com/resources/certifications for latest cellular and regulatory approvals
SAFETY UL60950-1, IEC62368-1, CB, EN62311, UL 121201/CSA 213 (Class 1, Div 2)
ENVIRONMENTAL ROHS3
EMISSIONS / IMMUNITY CE; RED; FCC Part 15, Subpart B*; ICES-003; AU/NZS CISPR32
WARRANTY
PRODUCT WARRANTY 3-year**
*Compliant to limits for a Class A digital device when tested with power supply 76002104.

**Standard 3-year warranty upgradeable to 5 years with purchase of a Digi Remote Manager Premier 5-year subscription applicable to the product purchased only at the time of product purchase and with product registration at that time in Digi Remote Manager.

ENTERPRISE SOFTWARE Description
PROTOCOL SUPPORT HTTPS, FTP client, TLS v1.2, SCP (client and server), SFTP, SMTP client for use by scripts and the command line, SNMP (v2/v3), SSH; remote management via Digi Remote Manager®; protocol analyzer, ability to capture PCAP for use with Wireshark; DynDNS; dynamic DNS client compatible with BIND9/No-IP/DynDNS; captive portal, Intelliflow; Nagios, DNS server, NTP server, multicast, mDNS, IPerf
SECURITY IP filtering, stateful firewall, custom firewall rules (iptables), address and port translation; TLS 1.2 and above, OpenVPN client and server; VPN tunnels; authentication: RADIUS, TACACS+; certificates; MAC address filtering; VLAN support
VPN IPSec with IKEv1, IKEv2, NAT Traversal; OpenVPN client and server; GRE PN tunnels; cryptology: SHA-1/256/384/512, MD5, RSA; encryption: 3DES and AES up to 256-bit (CBC mode for IPsec); Diffie Hellman: DH groups 1-32 (CURVE448)
ROUTING/FAILOVER IP pass-through; NAT, NAPT with IP port forwarding; GRE; multicast routing; routing protocols: RIP (v1, v2) OSPF, BGP; IP failover: VRRP; automatic failover, Digi SureLink®
OTHER PROTOCOLS DHCP; dynamic DNS client compatible with No-IP/DynDNS
